详细信息当前位置:首页 -> 螺栓型陶瓷电容

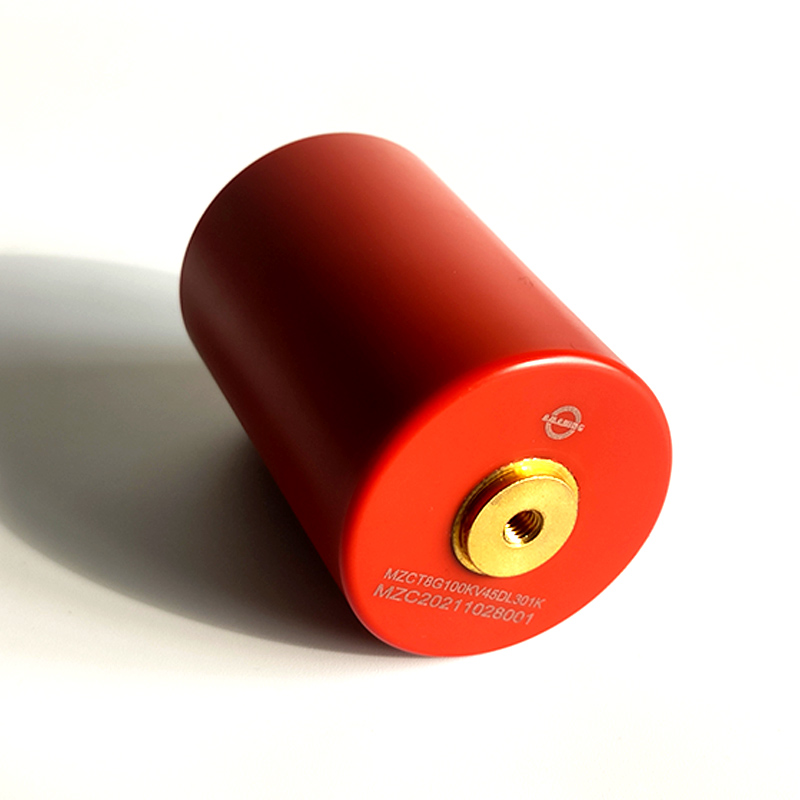

陶瓷螺栓电容100KV X光设备电源螺栓型高压电容
名称:陶瓷螺栓电容100KV X光设备电源螺栓型高压电容
发布时间:2022-02-14 14:15:02点击率:
详细信息
产品特性Features

低损耗Low dissipation factor of 0.2% at 1 KHZ

高频特性好High frequency ≥550KHZ

过大电流High current ≥100mA

耐压特性好High voltage ≥60KVDC

绝缘电阻大High insulation resistance ≥400000MΩ

使用寿命长Long life ≥10 years

用途Applications

适用于高频高压电源High frequency & high voltage power supplies;

激光CO2 lasers, high voltage pulse generator

X光机电源X-ray equipment

无损探伤检测NDT (Non-destructive testing)

机场安检设备Airport security equipment



陶瓷温度特性Ceramic dielectric properties:






外观尺寸Dimension & Lead Style




编码释义Explanationt of part numbers:
关于N4700 材料N4700陶瓷电容是近年研发成功的一种新型陶瓷,是高端产品中广泛使用的陶瓷材质,相对于其它I类陶瓷其介电常数大,适合于做容量较大的电容,其具有耐压更高,介质损耗小于0.2%,比一般II类陶瓷低很多;绝缘电阻大于200000MΩ,频率特性好,温度系数好,承受电流大,在温度从-25℃到+85℃时容量变化+/-28%,寿命长,其使用寿命在10年以上。



N4700 ceramic capacitor is successfully developed in recent years, a new type of ceramic, a ceramic material widely used in high-end products,compared to other Class I ceramic dielectric constant large, suitable for larger capacitance, resistance higher voltage, dissipation factor less than 0.2%, much lower than the average class II ceramic; insulation resistance is greater than200000MΩ, better frequency and characteristics of the temperature coefficient, withstand greater current, Its temperature variation of capacitance is within ±28% from -25°C to +85°C, it is life of more than 10 years.

注意事项 PRECAUTIONS

(1)运输和储存

•请避免在高温或高湿度或淋雨状态下运输或储存电容。

•不要放置在有毒气体,如硫酸,盐酸,硝酸等。

•避免碰。

(2)在操作过程中

•避免接触,如汗液电解质。不要赤手触摸。

•避免过多的影响,如坠落造成。

•请勿焊接螺柱端子。

•不要再机终端。

(3)用法

•当电容器用于高速脉冲,如激光,确保外加电压(峰 - 峰值电压),电容器的额定规格内。

•确保电容不暴露辐射室或变压器。



(1) During transportation and storage

• Do not transport or store where the capacitor will be exposed to high temperature or high humidity.

• Do not expose to poisonous gases such as H2SO4, HCL or HNO3.

• Avoid excessive impact such as that caused by falling.

(2) During operation

• Avoid contact with electrolytes such as perspiration. Do not touch with bare hands.

• Avoid excessive impact such as that caused by falling.

• Do not apply solder to stud terminals.

• Do not re-machine the terminals.

(3) Usage

• When the capacitor is used for high-speed pulses such as with a laser, make sure that the impressed voltage (peak-to-peak volt-age) is within the capacitor’s rated specifications.

• Make sure that the capacitor is not exposed to radiant heat from cham
