详细信息当前位置:首页 -> 瓷片电容

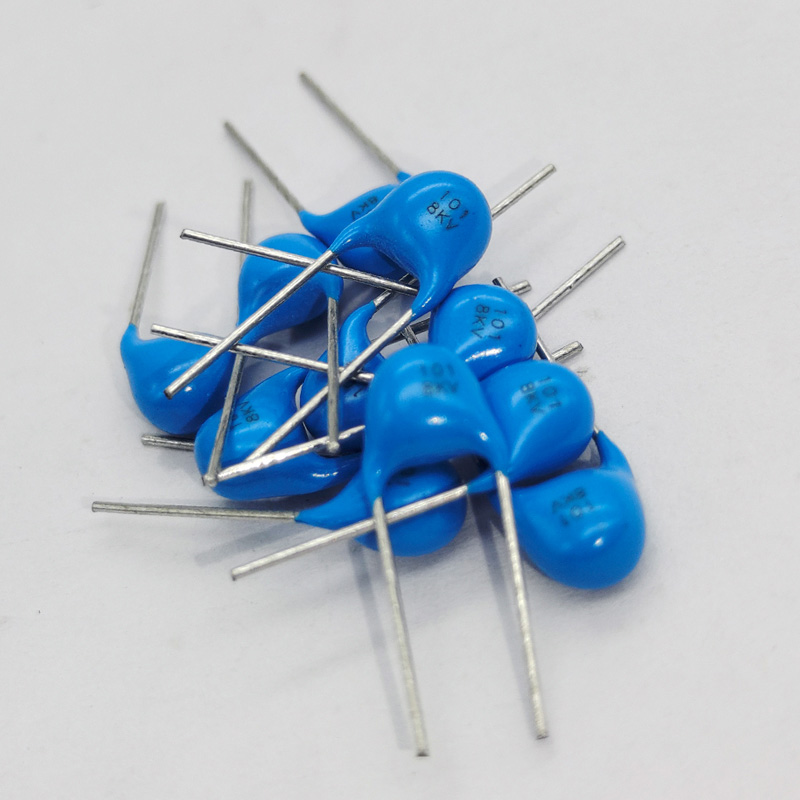

直插插脚陶瓷电容器 8kv 瓷片电容器
名称:直插插脚陶瓷电容器 8kv 瓷片电容器
发布时间:2022-02-14 09:26:26点击率:
详细信息
产品特性Features

低损耗Low dissipation factor of 0.06% at 1 KHZ

高频特性High frequency ≥100KHZ

高压特性好High voltage ≥2Un(额定电压)

绝缘电阻大High insulation resistance ≥1000000MΩ

用途Applications

高压电源High voltage power supplies;

激光脉冲gas lasers, high voltage pulse generator

智能电网Smart grid

陶瓷温度特性Ceramic dielectric properties:

外观尺寸Dimension & Lead Style:


订购产品说明Ordering Information


规格型号释义Explanationt of part numbers:

注意事项 PRECAUTIONS

(1) 运输和储存

•请避免在高温或高湿度或淋雨状态下运输或储存电容。

•不要放置在有毒气体,如硫酸,盐酸,硝酸等。

•避免碰撞。

(2) 在操作过程中

•避免接触,如汗液电解质。不要赤手触摸

•小心轻放,避免坠地。

•请勿焊接螺柱端子

•不要再接终端。

(3) 用法

•当电容器用于高速脉冲,如激光,确保外加电压(峰 - 峰值电压)在电容器的额定规格内。

•确保电容器不暴露使用,请在变压器油或环氧树脂中密封。



(1) During transportation and storage

• Do not transport or store where the capacitor will be exposed to hightemperature or high humidity.

• Do not expose to poisonous gases such as H2SO4, HCL or HNO3.

• Avoid excessive impact such as that caused by falling.

(2) During operation

• Avoid contact with electrolytes such as perspiration. Do not touch with barehands.

• Avoid excessive impact such as that caused by falling.

• Do not apply solder to stud terminals.

• Do not re-machine the terminals.

(3) Usage

• When the capacitor is used for high-speed pulses such as with a laser, make sure that the impressed voltage (peak-to-peak volt-age) is within the capacitor’s rated specifications.

•Make sure that the capacitor is not exposed to radiant heat from chambers or transformers.
