Name：Epoxy potting cylinder voltage doorknob capacitor

Published:2018-07-13 14:25:18Click to rate：

Details

Epoxy potting high voltage doorknob capacitor

PRODUCT DESCRIPTION

In high voltage ceramic capacitors application field, requiring a small, high voltage and high frequency characteristics. With the progress of materials, electrodes and manufacturing technology, great progress has been made in the development of high-voltage ceramic capacitors, and has been widely used. High-voltage ceramic capacitors have become an indispensable component of high-power high-voltage electronic products.

Name: doorknob style high voltage ceramic capacitor
Appearance of small size
Relative to other material more portable and reliable
Rapid pulse charge and discharge performance
Capacity with low temperature gradient
Under high or low temperature applications
Different shapes can be customized

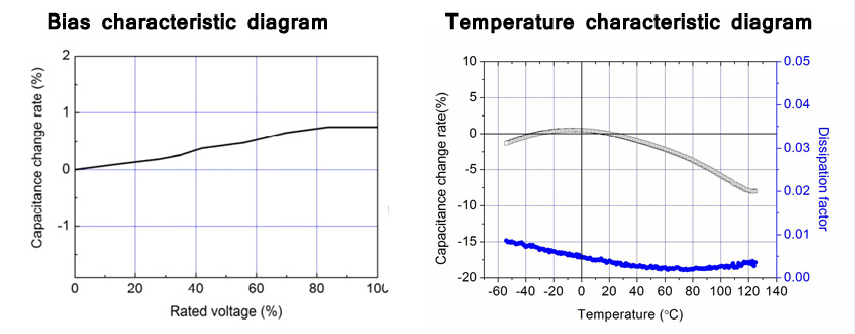

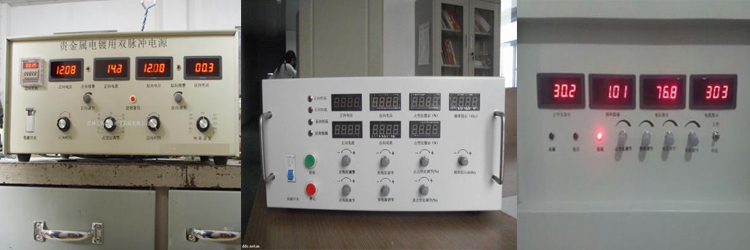

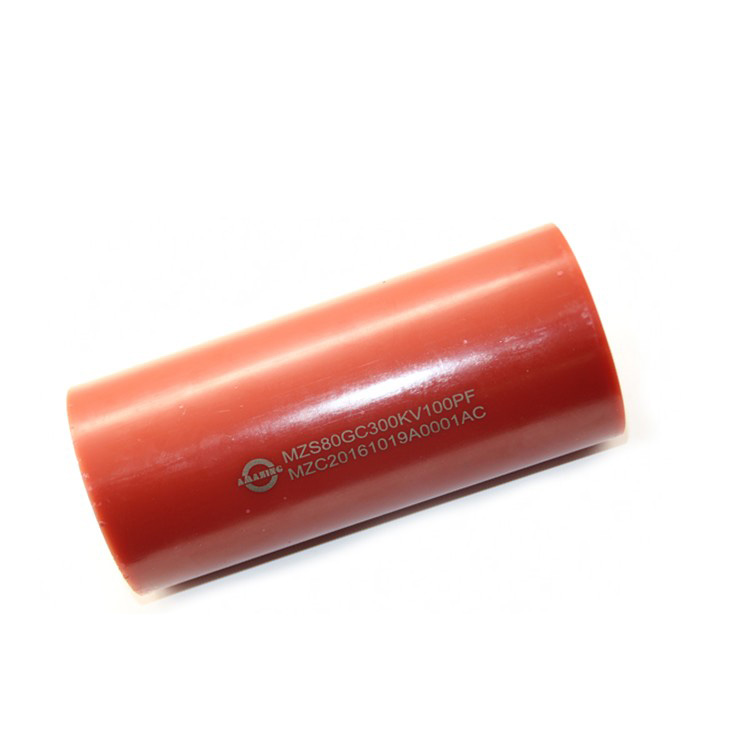

IMAGE DISPLAY

ELECTRICAL PARAMETER
Dielectric constant: 320
Test voltage: 2 times the nominal voltage rating
Temperature: In-50℃~+125℃ temperature range, volume change rate is less than 3%
Lighting shock test: 80kv and lightning socks without exception
Pulse life test: Under the rated voltage 1KHZ rapid pulse repetition frequency (PRF) battery life not less than 10 million times.

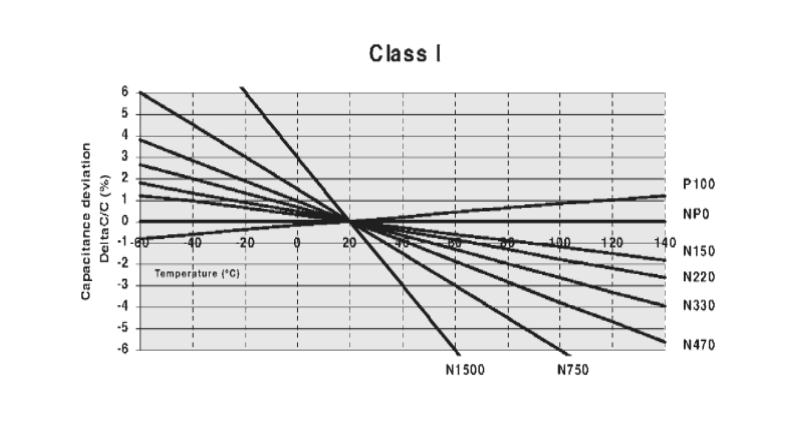

About N4700 ceramic

N4700 ceramic capacitor is successfully developed in recent years, a new type of ceramic, a ceramic material widely used in high-end products,compared to other Class I ceramic dielectric constant large, suitable for larger capacitance, resistance higher voltage, dissipation factor less than 0.2%, much lower than the average class II ceramic; insulation resistance is greater than200000MΩ, better frequency and characteristics of the temperature coefficient, withstand greater current, Its temperature variation of capacitance is within ±28% from -25°C to +85°C.

SPECIFICATION TABLE

Material code	Rated voltage	Capacitance	Lightning impluse	Tolerance	D(mm)	T(mm)	H(mm)	M(mm)
MZS30PC50KV50P	50KV	50PF	75KV	±10%	40	23	30	M5
MZS30PC50KV101K	50KV	100PF	75KV	±10%	40	25	30	M5
MZS40PC50KV151K	50KV	150PF	75KV	±10%	40	26	30	M5
MZS40PC50KV201K	50KV	200PF	75KV	±10%	40	27	36	M5
MZS40PC50KV301K	50KV	300PF	75KV	±10%	40	30	36	M5
MZS50PC50KV401K	50KV	400PF	75KV	±10%	55	30	36	M5
MZS50PC50KV501K	50KV	500PF	75KV	±10%	55	30	36	M5
MZS75PC50KV102K	50KV	1000PF	75KV	±10%	75	44	50	M5
MZS75PC50KV202K	50KV	2000PF	75KV	±10%	75	44	50	M5
MZS80PC50KV301K	50KV	4000PF	75KV	±10%	80	80	87	M6
MZS80PC50KV802K	50KV	8000PF	75KV	±10%	80	126	136	M6
MZS80PC50KV102K	50KV	10000PF	75KV	±10%	80	142	152	M

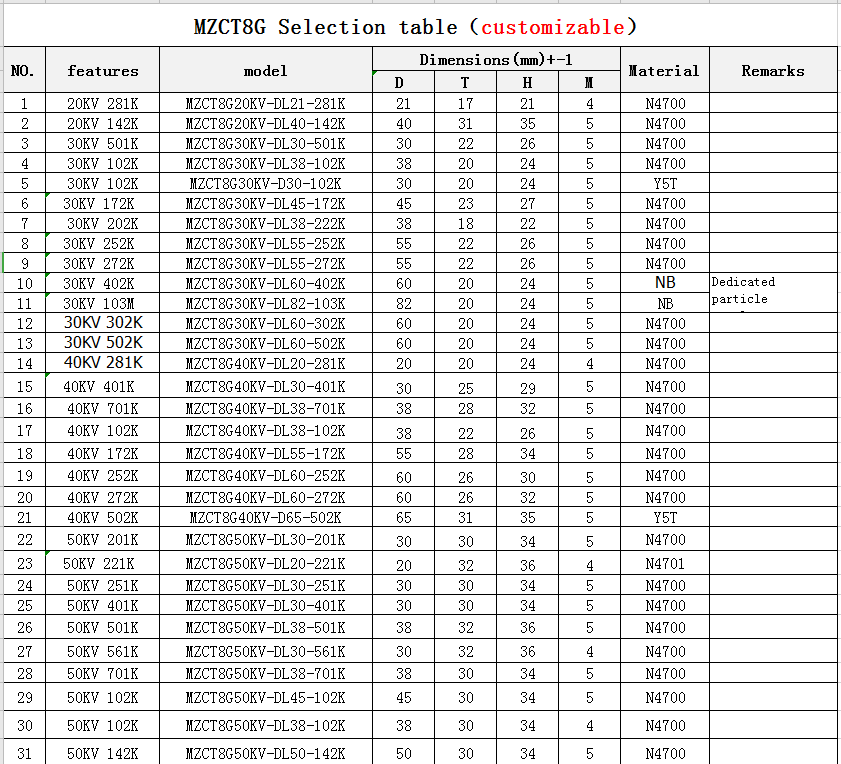

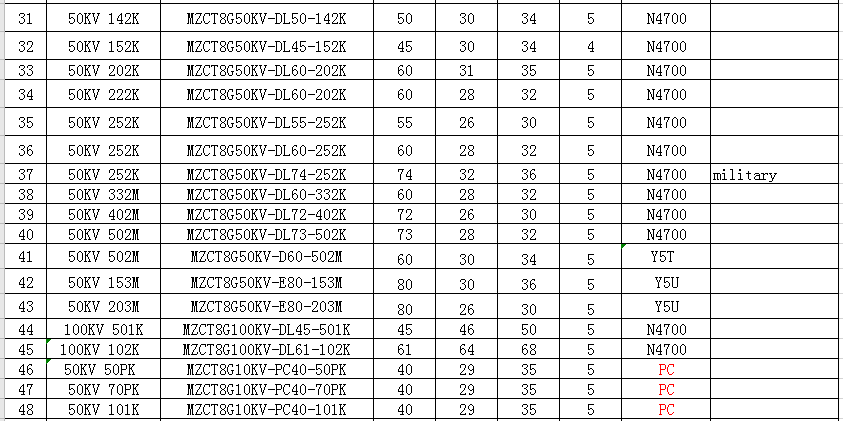

Other model specifications

APPLICATION FIELD

Widely used in high power pulse power, particle accelerators, electromagnetic microwave equipment, laser photoelectric equipment, electronic equipment, radar detection, nondestructive testing, material, electrostatic dust removal electric field, all kinds of special pulse power supply, ect
