PRODUCT DESCRIPTIONVoltage doubler module is an integrated voltage doubler integrated rectifier module, which is part of the entire circuit integrated in a device, because of its integrated structure, so it is not subject to vibration, humidity, gas corrosion, not afraid of dust, oil Baptist, can work in harsh environments. Ideal for use in photomultipliers, ionization chambers and similar stable high voltage DC rectifiers that require high voltage, low leakage detection devices.
Low dissipation, small tolerance
Good charge and discharge performance
Small size, high withstand voltage
A variety of series, a variety of assembly way
Stable electrostatic capacity
ELECTRICAL PARAMETERName: multiplier ceramic capacitor
Frequency:1KHz
The rated voltage:10 ~ 50 KV
Insulation resistance:(IR)≥10000MΩ
The loss tangent:Tg ≤0.3%
Capacitance:10 ~103 PF
Tolerance:K (± 10%)
Withstand voltage test:DC1.5 times no breakdown or flashover
Series A: enhanced, by silver fittings connection between capacitance per level, str ucture optimization, heat evenly, increase insulation, good reliability

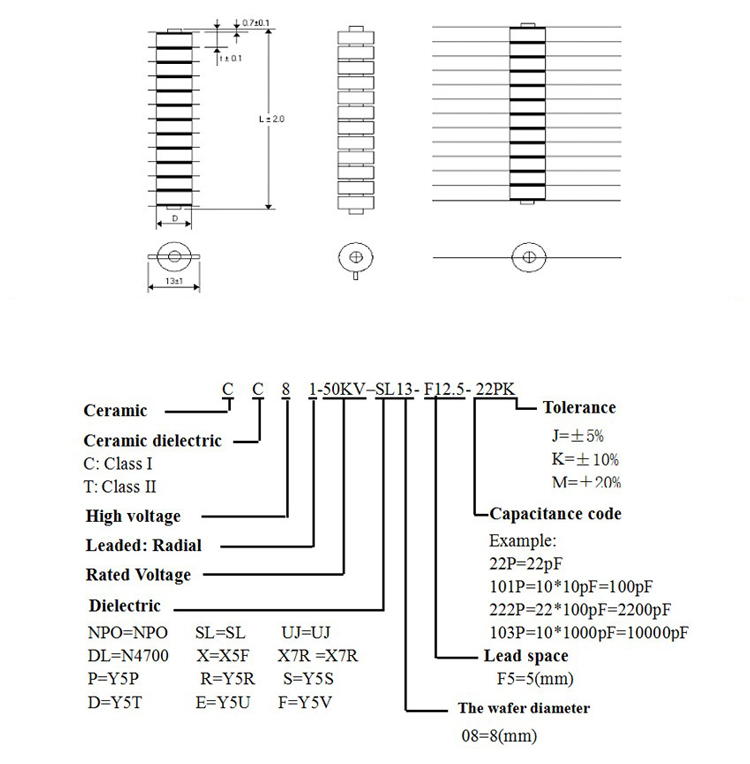

Material code | Capacity | Rated voltage | D (mm) | L (mm) | PCS/STACK |
CDM20KV151KB12 | 150PF | 20KV | 6.1 | 71 | 12 |
CDM10KV251KB12 | 250PF | 10KV | 5.2 | 66 | 12 |
CDM20KV331KB11 | 330PF | 20KV | 7.8 | 66 | 12 |
CDM20KV471KB12 | 470PF | 20KV | 8.3 | 75 | 12 |
CDM20KV501KB12 | 500PF | 20KV | 8.3 | 74 | 12 |
CDM30KV221KB10 | 220PF | 30KV | 8.5 | 91 | 10 |
Can provide module customization, multi-level customization is welcome
B-Model parameter table
B series: economy, direct welding between capacitance per level, and unilateral or bilateral derivation leads to two kinds of structure, cheap, economical and practica l, overall length can be adjusted according to customer's requirements.
Material code | Capacity | Rated voltage | D (mm) | L (mm) | PCS/STACK |
CDM20KV101KA10 | 100PF | 20KV | 5.2 | 62 | 10 |
CDM20KV151KA12 | 150PF | 20KV | 6.2 | 60 | 12 |
CDM20KV251KA12 | 250PF | 20KV | 5.2 | 59 | 12 |
CDM20KV301KA12 | 300PF | 20KV | 8.0 | 60 | 12 |
CDM20KV351KA12 | 350PF | 20KV | 6.2 | 58 | 12 |
CDM20KV471KA12 | 470PF | 20KV | 8.7 | 63 | 12 |
Can provide module customization, multi-level customization is welcome

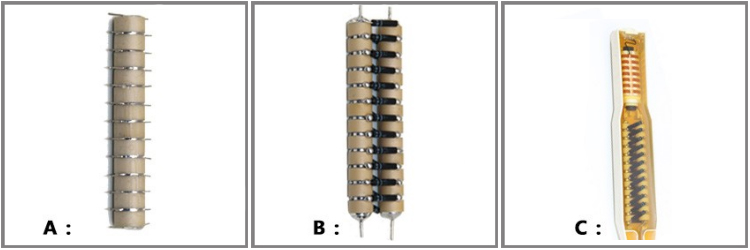

OTHER STYLE

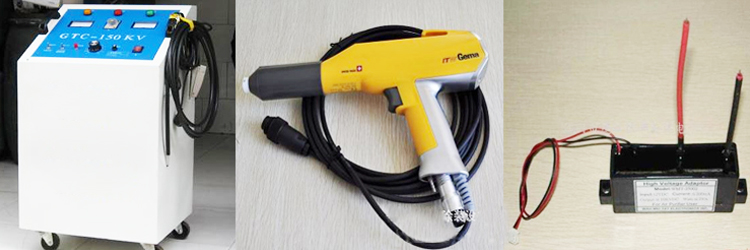

APPLICATION Suitable for electrostatic spraying doubler module circuit application and typical handheld high-voltage electrostatic spray gun, the built-in high voltage module, low and high pressure anion generator in high voltage power supply components. Static electricity generating circuit, spraying machines, electrostatic flocking equipment, doubler circuit, high frequency doubler rectifier circuit, a major part of the multistage doubler rectifier circuit, low power dc high voltage power supply, etc.
